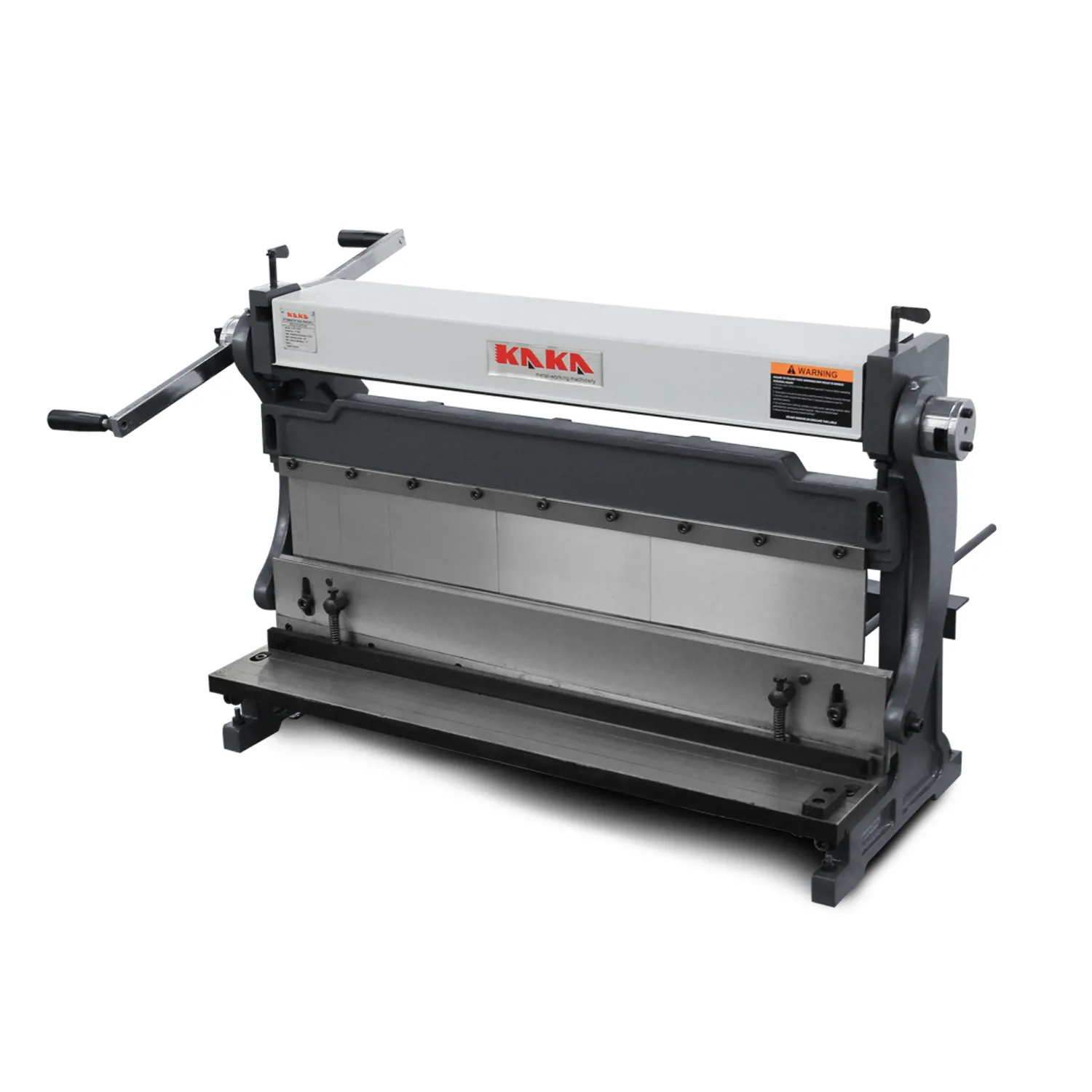

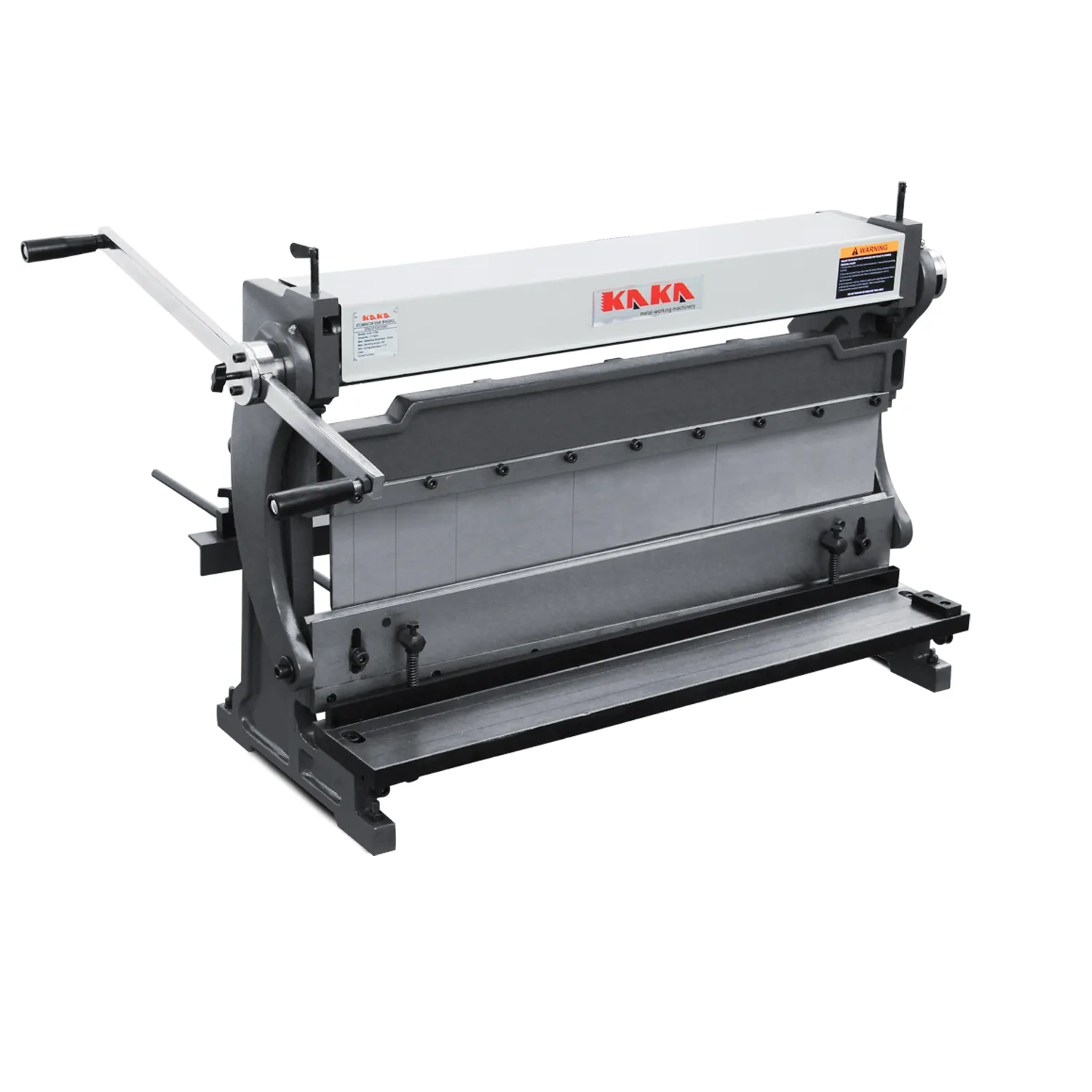

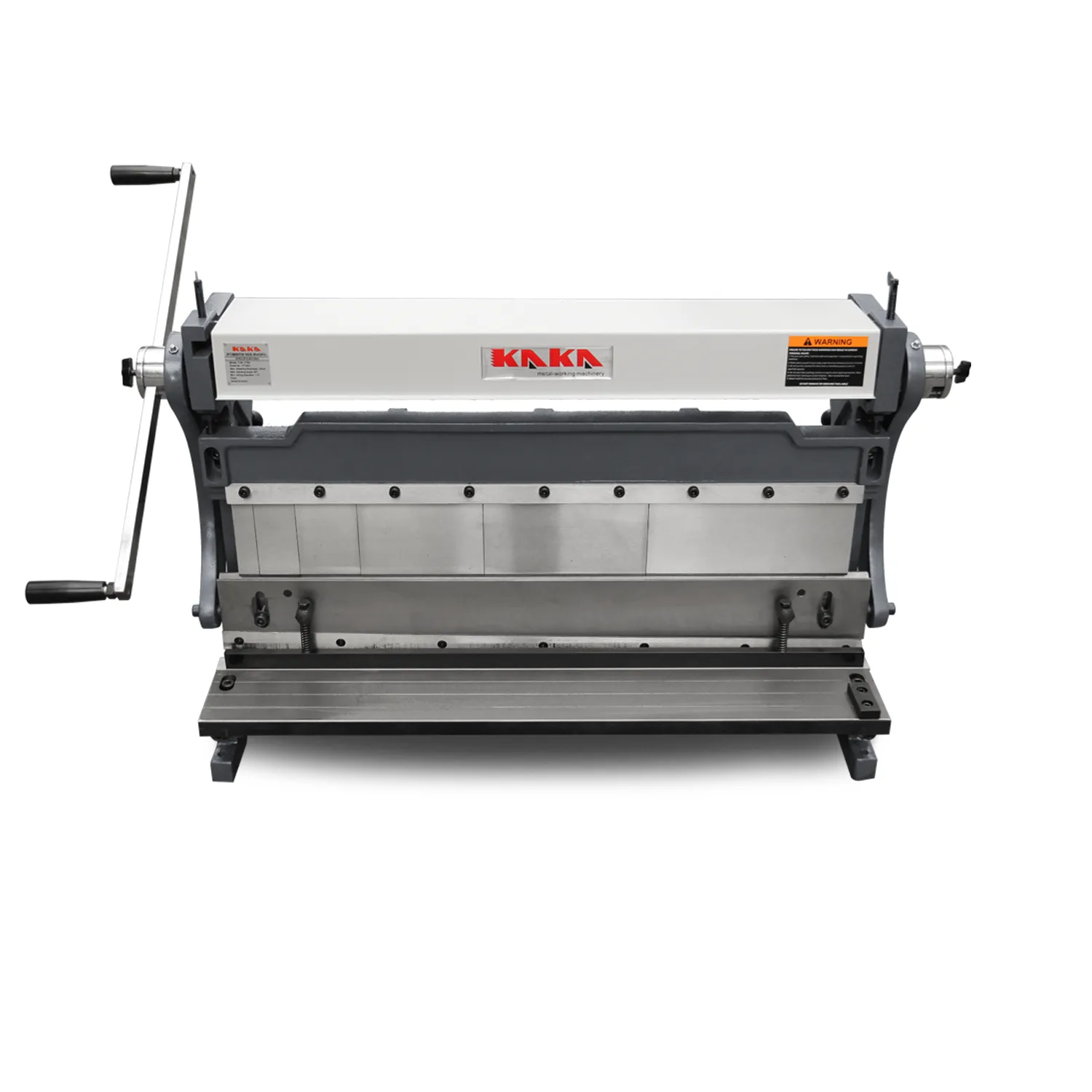

KANG Industrial 3-IN-1/30 Sheet Metal Fabrication Machine
A combination of shear, brake, and rolling compact machines will save money and space
Features
760mm working width for shear, brake, and rolling
Max. 1.0 mm mild steel plate for all three functions

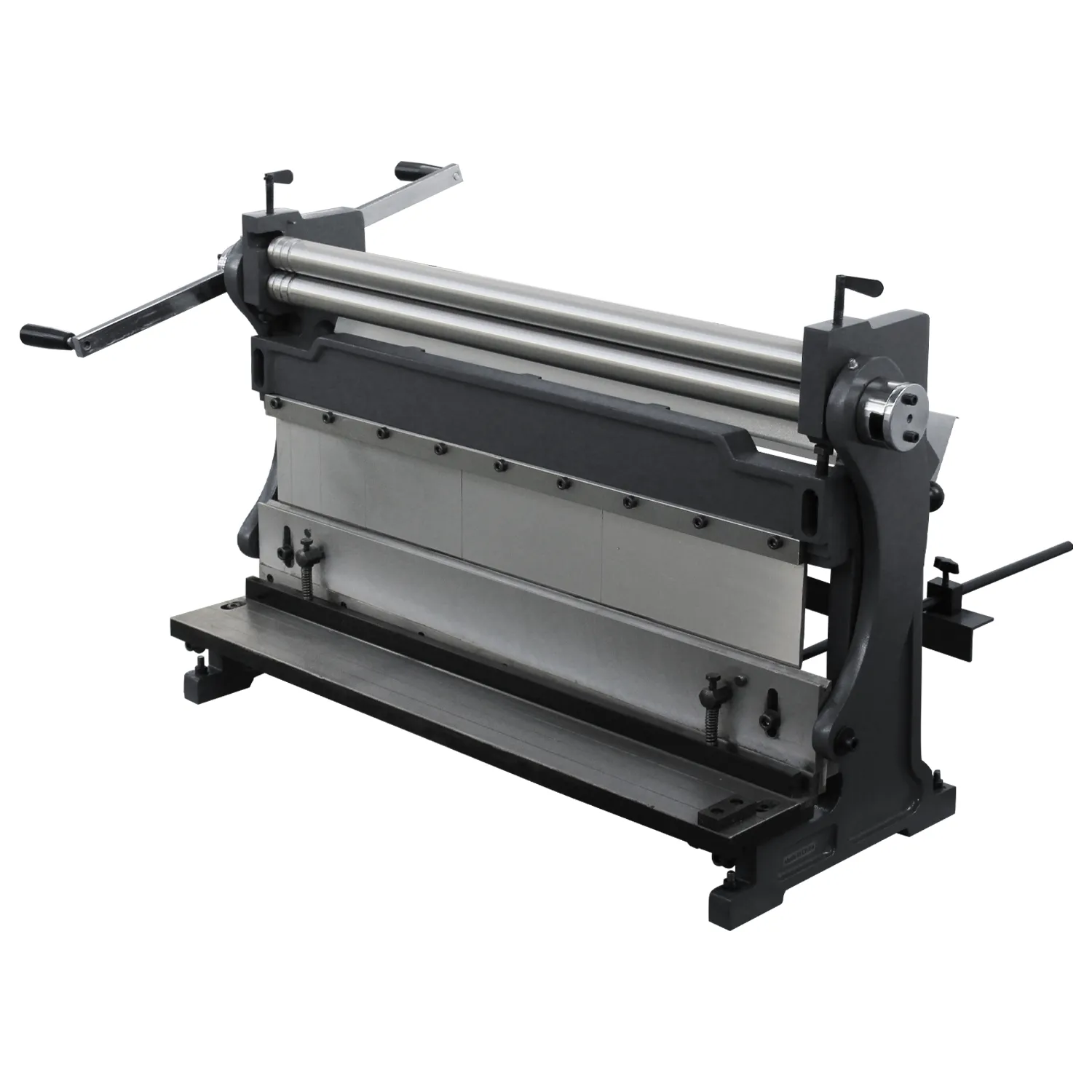

Slip roller with 3 grooves for wire rolling
Segment fingers for pan box brake

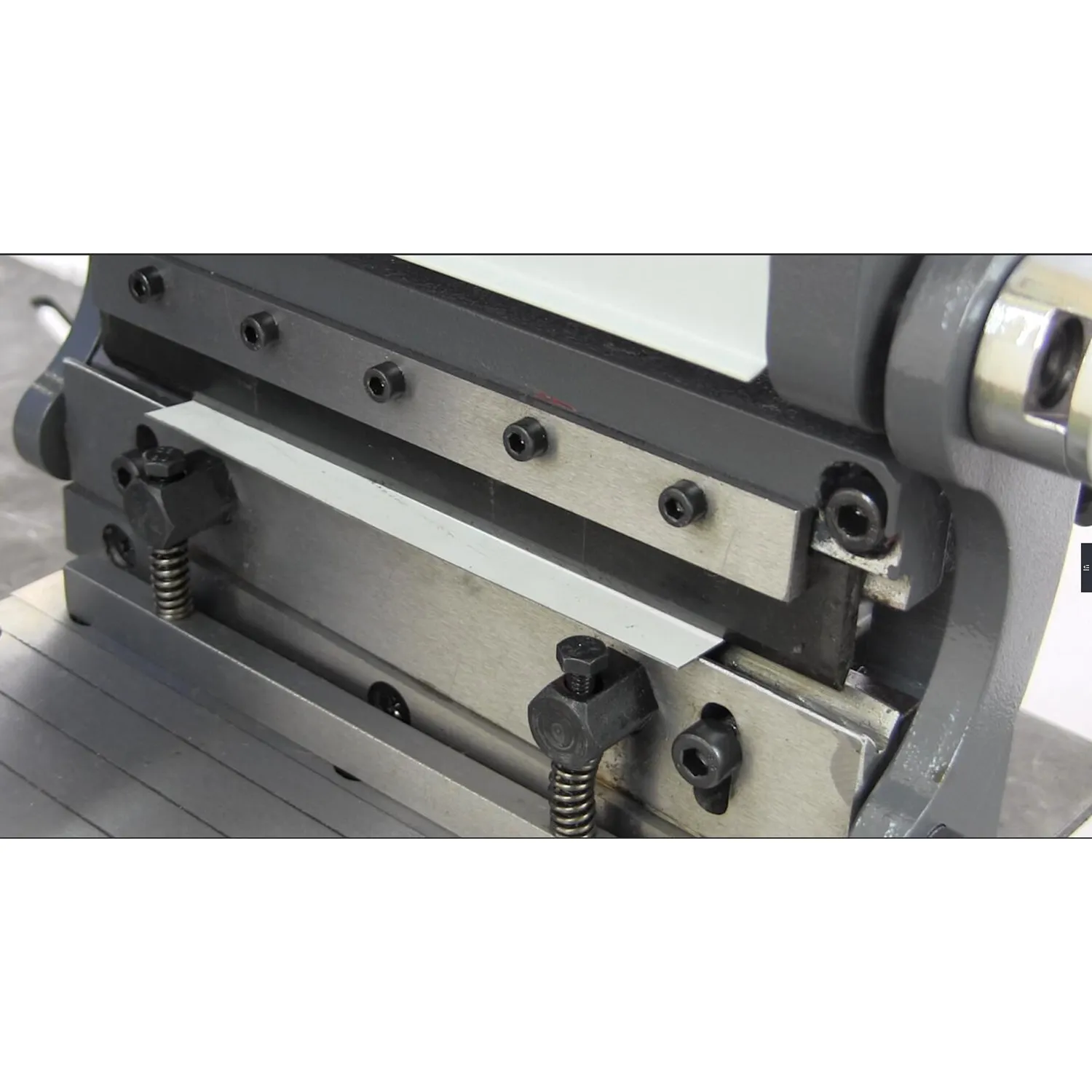

Hardened blade for long cutting life

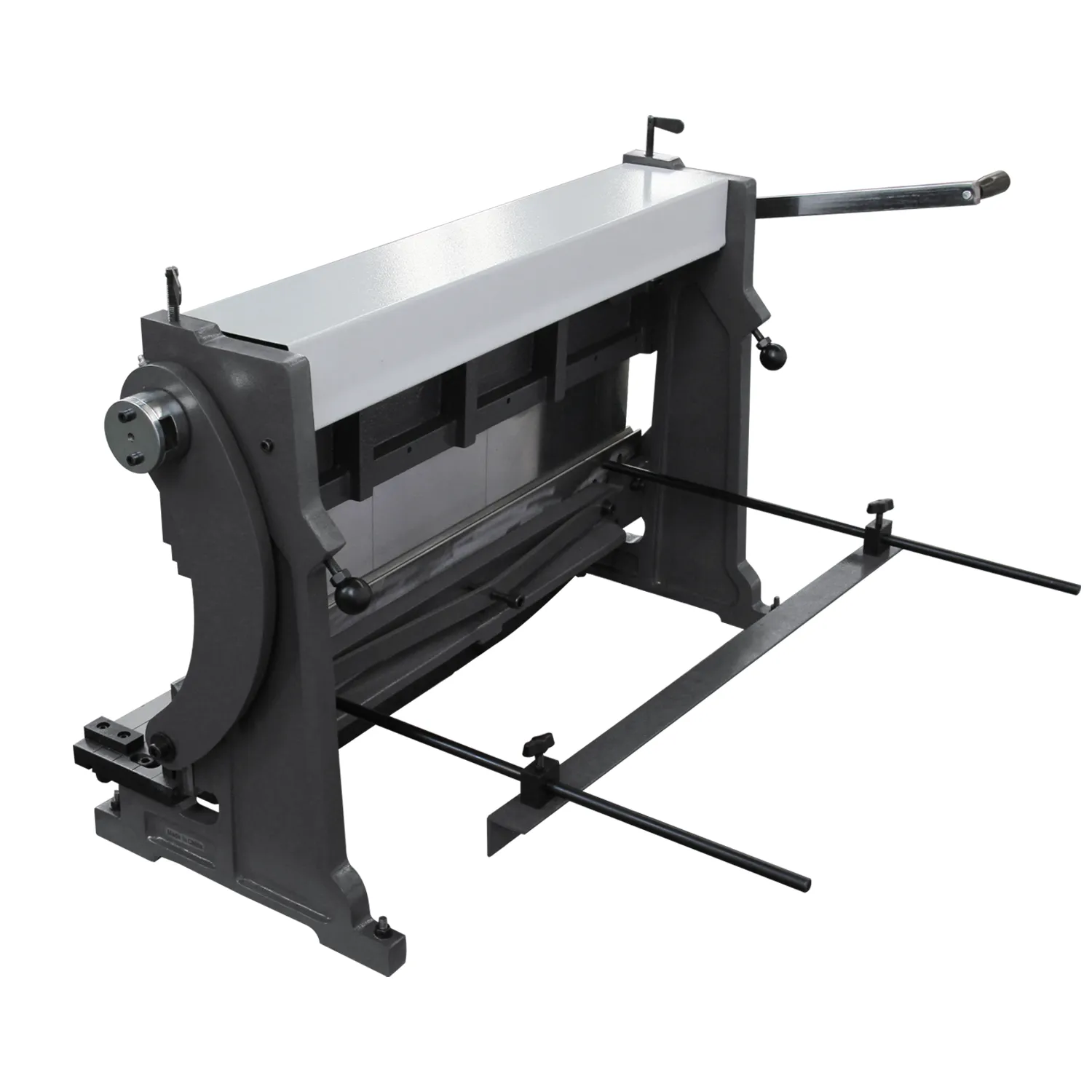

Standard back gauge for cutting and bending functions
Could equip the optional stand.
Specifications
| SKU | 171003 |
| Model | 3-IN-1/30 |
| Bed width | 760 mm |
| Max. shearing thickness | 1.0 mm |
| Max. bending thickness | 1.0 mm |
| Max. bending angle | 90° |
| Max. rolling thickness | 1.0 mm |
| Min. rolling dia. | 39 mm |
| Packing size | 100x45x72 cm |
| N.W./G.W. | 136/143 kg |
